Wedge Grip

NIDEC-SHIMPO’s Wedge Grip attachments are ideal for testing wires, strip material, and plastic tape or films. The Wedge Grip comes in two capacities for lighter and heavier loads; spring-loaded jaws automatically close on the specimen and tighten as tension is applied.

Grips and attachments sold individually (not in pairs).

  • Wedge Grip attachments are ideal for testing wires, strip material, and plastic tape or films.
  • The Wedge Grip comes in two capacities for lighter and heavier loads; spring-loaded jaws automatically close on the specimen and tighten as tension is applied.
Model FG-M6WDG50U FG-M10WDG500U FG-WDG50B
Capacity 100 lb (50 kg) 500 lb (250 kg) 100 lb (50 kg)

*Grips ending in B = Bottom Mount
*Grips ending in U = Upper Mount

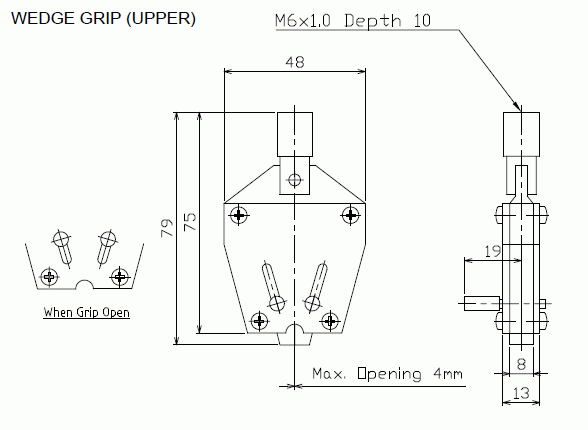

Download Wedge Grip (Upper) Dimensions

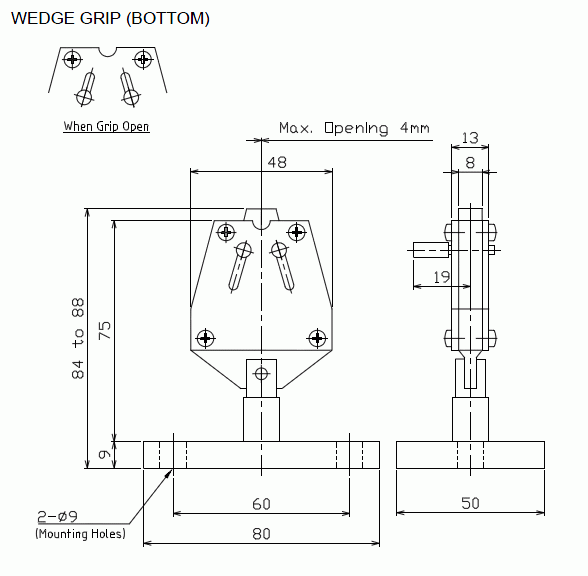

Download Wedge Grip (Bottom) Dimensions
FG-M6WDG50U Wedge Grip, Upper Mount, M6 Thread, 100 lb (50 kg) Capacity
FG-M10WDG500U High Capacity Wedge Grip, Upper Mount, M10 Thread, 500 lb (250 kg) Capacity
FG-WDG50B Wedge Grip, Bottom Mount 100 lb (50 kg) Capacity
