Vertical Rotary Torque Test Stand

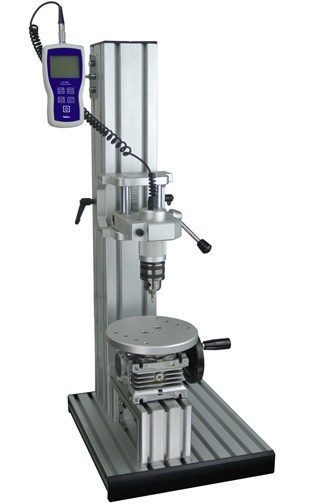

Torque Test Stand with Precision Controlled Rotation Table

The vertical TTST-V with user-controlled rotating table can be used with the TTC Torque Tool Tester, the FG 7000T/TA Digital Torque Gauges and the TNC Cap Tester due to its flexible mounting capabilities. These rugged test stands enable a torque force to be tightly applied to various Nidec-Shimpo torque instruments

These excellent features make the TTST Manual Torque Test Stands a valuable and versatile addition to performing tightly controlled torque tests.

Specifications

Model	TTST-V
Maximum Torque	22.5 lb (10.2 kg)
Angular Travel	CW or CCW no limit
Angular Rate	9° / wheel rev.
Throat	4.7″ (120 mm)
Slider Adjustable Height	16.9″ (430 mm) Max.
Slider Stroke	1.8″ (45 mm)

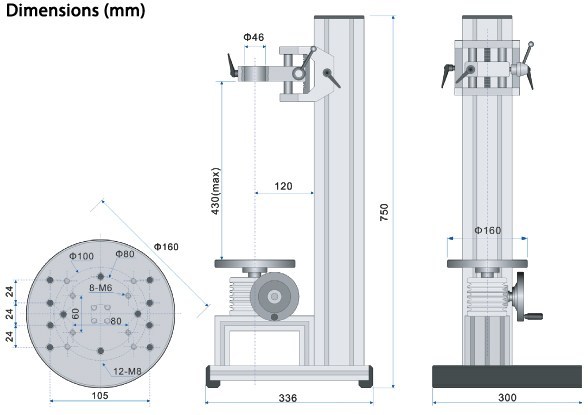

Dimension	13.2 x 13 x 29.5″ (336 x 330 x 750 mm)
Weight	42 lb (19 kg)
