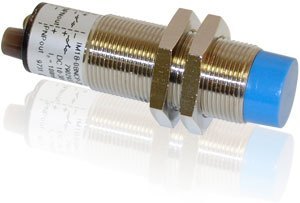

MCS-3109 Proximity Sensor

The MCS-3109 is complimentary (NPN-NO and NPN-NC) proximity sensor normally used in high-vibration areas and where a greater sensing distance is required.

  • NPN (NO, NC) output
  • 300 Hz frequency
  • 0.32″ (8 mm) sensing distance
  • 6.5′ (2 m) cable
  • NEMA 6 (IP67) rating, for use in high vibration areas
Model MCS-3109 proximity sensor
Sensing Distance 8 mm (0.32”)
Activating Frequency 300 Hz
Voltage Requirement 10 – 30 VDC
Output Current 100 mA
Housing Nickel plated brass
Ambient Temperature – 25° C to + 70° C (- 13° F to 158° F)
Degree of Protection IP67 / NEMA 4
MCS-3109 NPN (NO,NC) output, 300 Hz frequency, 0.32” (8 mm) sensing distance, 6.5’ (2 m) cable, NEMA 6 (IP67) rating, for use in high vibration areas

Literature Download

MCS-3109 Manual
