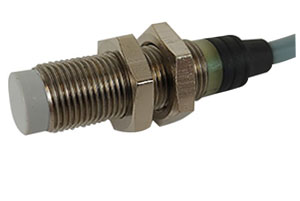

DJ3-G Proximity Sensor

Ideal proximity sensor for detecting metal in front of its sensing surface with its flush-mount sensing head.

Features a pre-wired 6.5’ foot cable assembly with an IP67, compact nickel-plated brass housing. Its two wire, NAMUR output enables the DJ3-G to be utilized in a myriad of heavy industrial and automated environments.

  • NAMUR output
  • Nickel-Plated Brass Housing
  • 2 kHz frequency
  • Flush Mounting with M12 thread
  • 6.5′ (2 m) silicone cable
  • 0.08″ (2 mm) sensing distance
  • IP67 enclosure rating
Model DJ3-G proximity sensor
Sensing Distance 2 mm  (0.08”)
Switching Frequency 2 kHz
Output NAMUR
Rated Operational Voltage (Ue): 8.2 VDC; (UB): 6-35 VDC
Housing Material Nickel Plated Brass
Cable 6.5’ (2 m) silicone, 2-Wire, 26 AWG
Sensing Head Material Thermoplastic polyester
Ambient Temperature – 13° to + 248° F  (-25° to +120°C)
Dimensions M12 thread x 25 mm
Protection IP67 (Nema 1, 3, 4, 6, 13)
Approvals CE
DJ3-G NAMUR output, 2 kHz frequency, 6.5’ (2 m) cable, 0.08” (2 mm) sensing distance, NEMA 6 (IP67) rating

Literature Download

DJ3-G Manual
