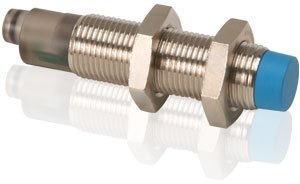

BI2-S12 Proximity Sensor

Model B12-S12 is a three wire DC normally open NPN (sinking) type proximity switch which features:

  • Short circuit and overload protection
  • LED output indicator
  • NEMA 1, 3, 4, 6, 13 and IEC IP67 rated
  • Use 4.7 kñ pull-up resistors if an open collector input is not available
  • NPN (NO) sinking output 1.5 kHz frequency
  • LED indication
  • 6.5′ (2 m) cable
  • 0.08″ (2 mm) sensing distance
  • NEMA 6 (IP67) rating
Model BI2-S12 proximity sensor
Power 10 – 30VDC (Positive)
Switching Frequency 1.5k HZ max
Sensing Distance 2 mm
Cable Length 2 meters
Operating Temperature – 25° C to + 70° (-13° F to 158° F)
BI2-S12 NPN (NO) sinking output 1.5 kHz frequency, LED indication, 6.5’ (2 m) cable, 0.08” (2 mm) sensing distance, NEMA 6 (IP67) rating
