3030AN Magnetic Pick-Up Sensor

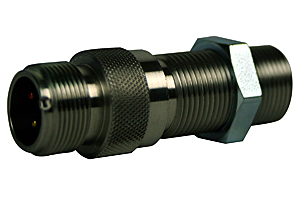

Magnetic pick-up with Amphenol connector; requires sensor cable assembly. This general-purpose unit is designed to mount in a 5/8”-18 threaded hole and is provided with a jam nut for sensor securing.

Model 3030AN pickup provides a sine wave output whenever there is an abrupt change from non-magnetic to magnetic material moving past the sensor pole. The output voltage is directly proportional to the change in magnetic flux intensity over the change in time.

  • Sine wave output from change in magnetic to non-magnetic
  • Change in voltage proportional to magnetic flux intensity over time
  • Range of 0.01″ (0.25 mm) typical clearance
  • Optional cable for 3030AN (CABLE-3030)
Model 3030AN magnetic pick-up sensor
Mounting 5/8” – 18 threaded hole
Output Sine wave
Adjustment Clearance of 0.1” between the sensor and gear
Temperature Range -65 to 225 °F (-54 to 107 °C)
3030AN Sine wave output from change in magnetic to non-magnetic, change in voltage proportional to magnetic flux intensity over time, range of 0.01” (0.25 mm) typical clearance
CABLE-3030 10′ (3 m) connection cable for 3030AN Sensor

Literature Download

3030AN Manual
