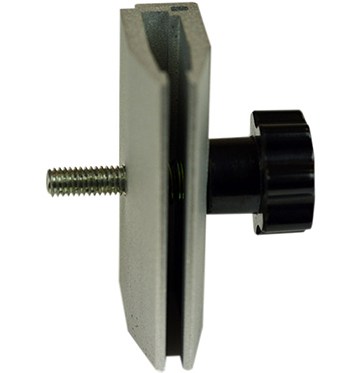

Peel Test Grip

NIDEC-SHIMPO’s Peel Test Grip possesses wide, serrated teeth for securely clamping down on test specimens such as films, tapes, labels or similar materials used in adhesive peel tests. Adjustment screw conveniently opens and closes the serrated teeth for quick test change out. Units are built to withstand tension forces up to 112 lb (50 kg).

  • Tension forces up to 112 lb (50 kg).
  • Serrated teeth for securely clamping down on test specimens.
  • Adjustment wheel enables proper, even tightening on specimen.
Model FG-M6PTG2U
Maximum Opening 0.08” (2 mm)
Maximum Capacity 112 lb. (50 kg)
Width 2.36” (60 mm)
Connection M6 female connection

Download Peel Test Grip Dimensions
FG-M6PTG2U Tension Peel Grip with wide, serrated teeth, maximum sample thickness of 0.08” (2 mm), M6 female thread, max. 112 lb. (50 kg).
