Jacob’s Chuck Grip

Jacob’s Chuck Grip attachments are designed for testing low gauge wire and rigid rods. The Chuck Grip accepts material diameters from 0.02” (0.05 mm) to 0.20” (5 mm).

Grips and attachments sold individually (not in pairs).

  • Jacob’s Chuck Grip attachments are designed for testing low gauge wire and rigid rods.
  • The Chuck Grip accepts material diameters from 0.02” (0.05 mm) to 0.20” (5 mm).
Model FG-M6JAC5U FG-JAC5B
Material Diameters 0.02“ (.05 mm) to .20” (5 mm) 0.02“ (.05 mm) to .20” (5 mm)
Capacity 100 lb (50 kg) 100 lb (50 kg)

*Grips ending in B = Bottom Mount
*Grips ending in U = Upper Mount

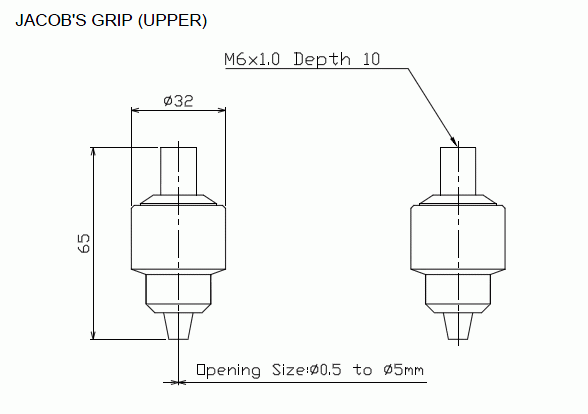

Download Jacob’s Grip (Upper) Dimensions

Download Jacob’s Grip (Bottom) Dimensions

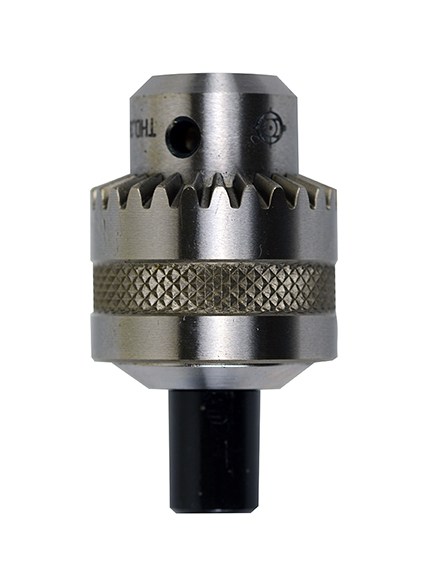

FG-M6JAC5U Jacobs Chuck Grip, M6 Thread, 100 lb (50 kg) Capacity
FG-JAC5B Jacobs Chuck Grip, 100 lb (50 kg) Capacity
