Fine Point Grip

NIDEC-SHIMPO’s Fine Point Grip attachments are perfect for testing fine and medium gauge wire, ribbon, tape, and paper. Two jaw widths and load capacities are available; both can handle material thickness up to 0.04” (1 mm).

  • NIDEC-SHIMPO’s Fine Point Grip attachments are perfect for testing fine and medium gauge wire, ribbon, tape, and paper.
  • Two jaw widths and load capacities are available; both can handle material thickness up to 0.04” (1 mm).
Model FG-M6FPG3 FG-M6FPG8
Range Thickness 0.04” (1 mm) 0.04” (1 mm)
Capacity 30 lb (15 Kg), 0.12” (3 mm) 60 lb (30 Kg), 0.31” (8 mm)
Model FG-M4FPG3 FG-M4FPG8
Range Thickness 0.04“ (1 mm) 0.04“ (1 mm)
Capacity 30 Lb (15 kg), 0.12“ (3 mm) 60 lb (30 kg), 0.31“ (8 mm)

Download Fine Point Grip 3-M4 Dimensions

Download Fine Point Grip 3-M6 Dimensions

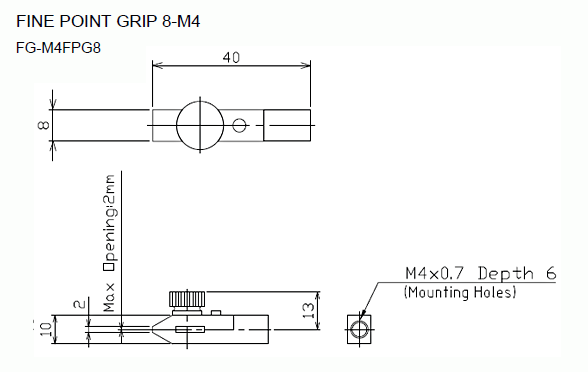

Download Fine Point Grip 8-M4 Dimensions

Download Fine Point Grip 8-M6 Dimensions
FG-M6FPG3 Steel 3 mm Fine Point Grip, M6 Thread, 30 lb (15 kg) Capacity
FG-M6FPG8 Steel 8 mm Fine Point Grip, M6 Thread, 60 lb (30 kg) Capacity
FG-M4FPG3 Aluminum 3 mm Fine Point Grip, M4 Thread, 30 lb (15 kg) Capacity
FG-M4FPG8 Aluminum 8 mm Fine Point Grip, M4 Thread, 60 lb (30 kg) Capacity
