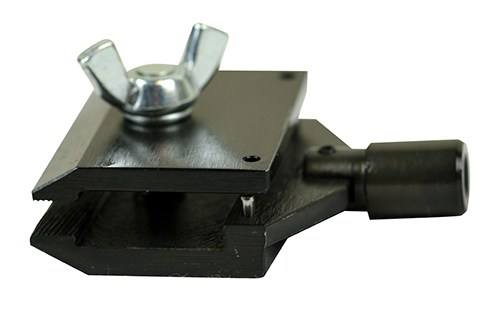

Film Grip

NIDEC-SHIMPO’s Film Grip attachments are heavy-duty, spring-loaded grips with serrated jaws which are ideal for handling film samples up to 0.39” (10 mm) thick and 0.79” (20 mm) or 1.97” (50 mm) wide.

  • Film Grip attachments are heavy-duty, spring-loaded grips with serrated jaws.
  • Ideal for handling film samples up to 0.39” (10 mm) thick and 0.79” (20 mm) or 1.97” (50 mm) wide.
Model FG-FLM50B FG-M6FLM50U
Range Thickness 0.079” (2 mm) 0.079” (2 mm)
Width 1.97” (50 mm) 1.97” (50 mm)
Capacity 100 lb (50 Kg) 100 lb (50 Kg)
Model FG-M4FLM20 FG-M6FLM20
Range Thickness 0.079” (2 mm) 0.079” (2 mm)
Width 0.8” (20 mm) 0.8” (20 mm)
Capacity 100 lb (50 Kg) 100 lb (50 Kg)

*Grips ending in B = Bottom Mount

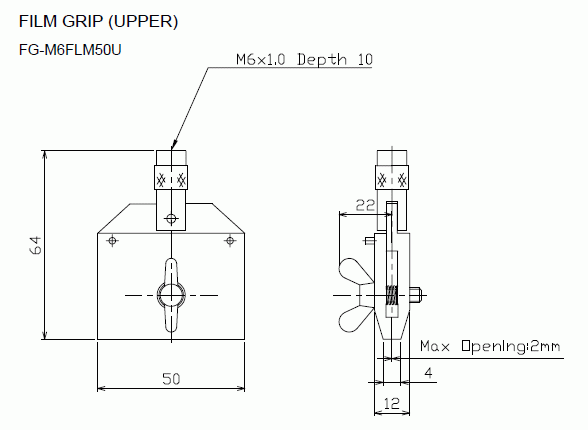

Download Film Grip (Upper) Dimensions

Download Film Grip (Bottom) Dimensions

Download Film Grip M4 Dimensions

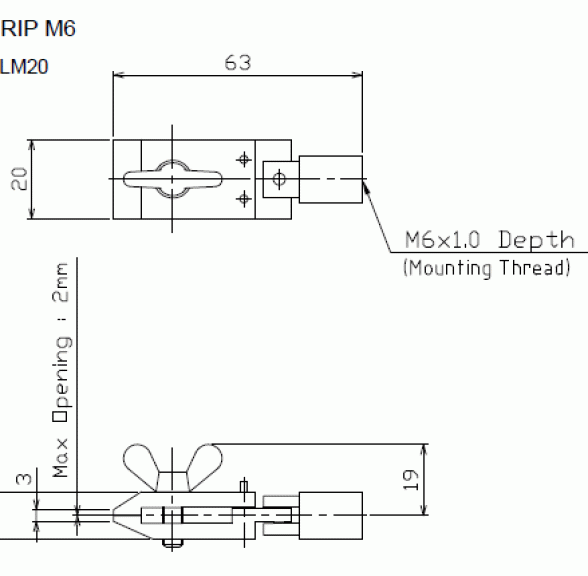

Download Film Grip M6 Dimensions

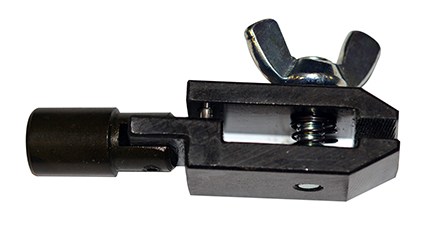

FG-M4FLM20 20 mm Wide Film Grip, M4 Thread, 100 lb (50 kg) capacity

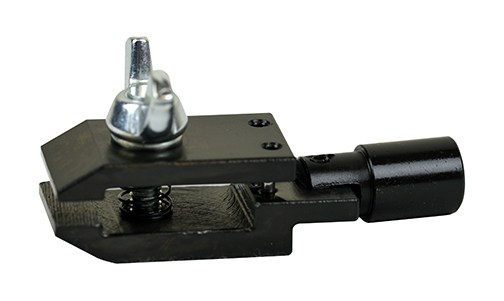

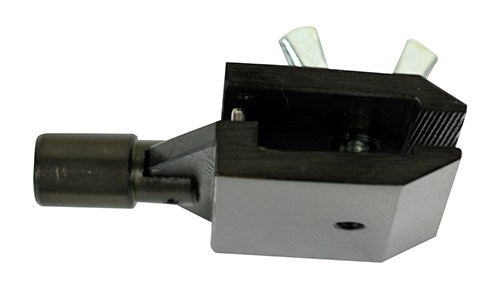

FG-M6FLM20 20 mm Wide Film Frip, M6 Thread, 100 lb (50 kg) Max. Capacity

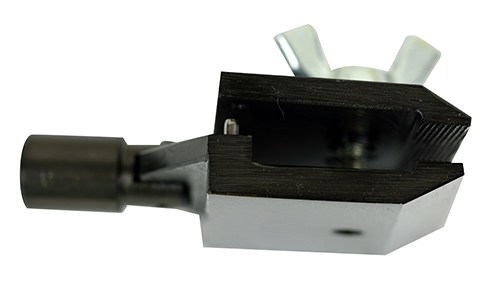

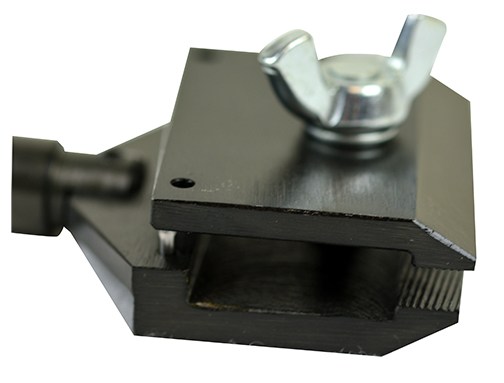

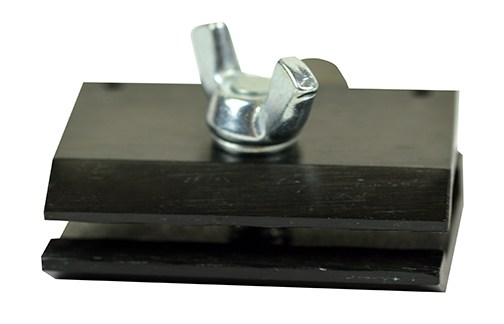

FG-M6FLM50U 50 mm Wide Film Grip, M6 Thread, 100 lb (50 kg) Max. Capacity

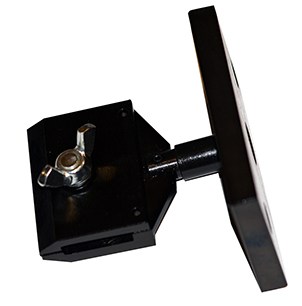

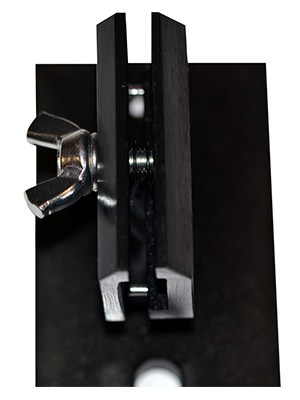

FG-FLM50B 2″ (50 mm) Wide Film Grip, Bottom, 100 lb (50 kg) Max. Capacity
