Fabric Grip

NIDEC-SHIMPO’s Fabric Grip attachments are eccentrically mounted and contain serrated roller grips that allow for self-tightening of specimens up to 3” (76.20 mm) wide and 0.25” (6.4 mm) thick.

  • Fabric Grip attachments are eccentrically mounted and contain serrated roller grips that allow for self-tightening of specimens up to 3” (76.20 mm) wide and 0.25” (6.4 mm) thick.
  • Available in both bottom or top mount
Model FG-M10FAB80U FG-FAB80B
Self-tightening Jaw Width 3” (76.20 mm) 3” (76.20 mm)
Range Thickness 0.25” (6.4 mm) thick 0.25” (6.4 mm) thick
Capacity 500 lb (250 Kg) 500 lb (250 Kg)

*Grips ending in B = Bottom Mount
*Grips ending in U = Upper Mount

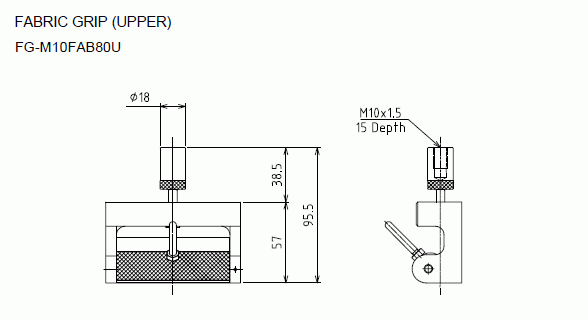

Download Fabric Grip (Upper) Dimensions

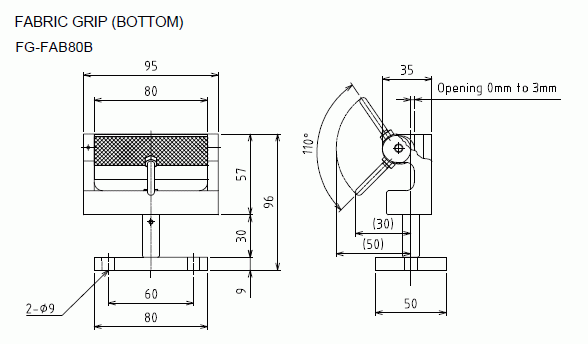

Download Fabric Grip (Bottom) Dimensions
FG-M10FAB80U Fabric Grip, M10 Thread, 500 lb (250 kg) Capacity
FG-FAB80B Fabric Grip, Bottom Mount, 500 lb (250 kg) Capacity
