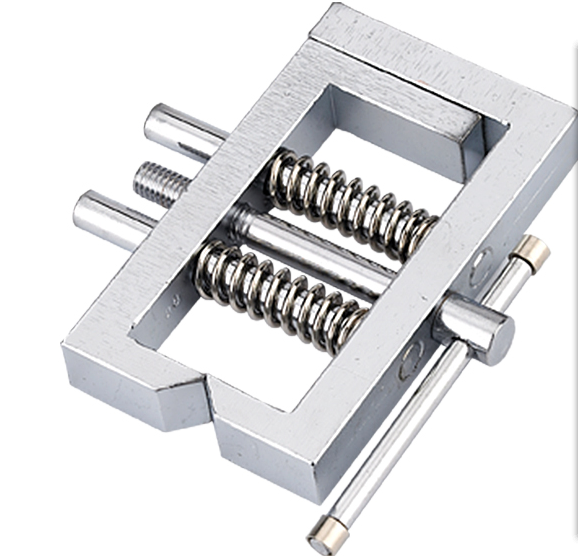

Adjustable Tension Grip

NIDEC’s tension force attachment possesses simple adjustment handle to enable quick, secure clamping onto test specimens. The fine point clamping surface allows ideal testing of various spooled items such as threads, cables, wires, etc. These tension grip attachments come with M6 female connection and are built to withstand tension forces up to 110 lb (50 kg).

  • Adjustment handle allows quick opening and closing of the contact point to enable simple set up for repetitive testing..
  • Tension grip has a M6 female connection, enabling connection with any M6 compatible device.
  • Maximum Opening of 0.4" (10 mm).

Model FG-M6ATC10U
Maximum Opening 0.4” (10 mm)
Capacity 110 lb (50 kg)
Connection M6 thread, female

Download Tension Grip Dimensions
FG-M6ATC10U Adjustable Tension Grip, M6 thread, 10 mm max. openging, 110 lb. (50 KG) max. capacity
