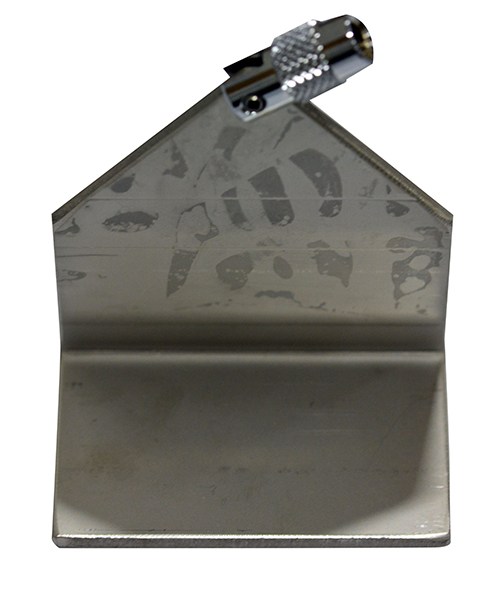

Carton Box Pull Hook

NIDEC-SHIMPO’s Carton Box Pull Hook is simple, yet specialized force gauge attachment for testing the required force to open cardboard boxes and similar packages.

  • Each unit possesses a 2.3” (60 mm) width, and can work up to a maximum load of 56 lb (250 N).
  • This hook has a M6 female connection, enabling connection with any M6 compatible device.
Model FG-M6CBH60U
Maximum Range 2.3” (60 mm)
Capacity 56 LB (25 KG)

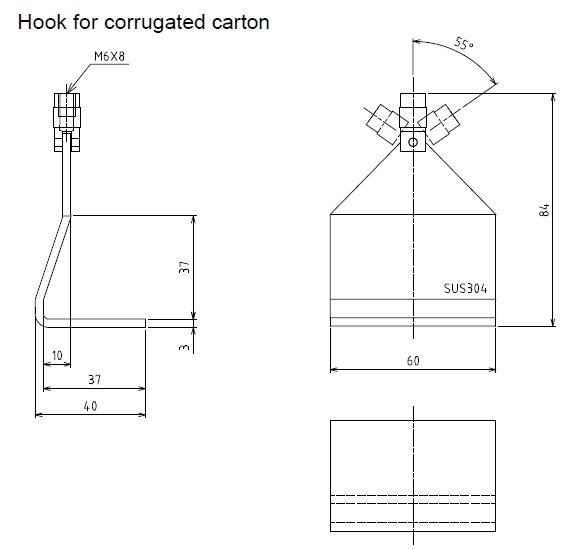

Download Carton Box Pull Hook Dimensions
FG-M6CBH60U Carton Box Pull Hook, M6 Thread, 56 lb (25 kg) Capacity

For use with M6 compatible force gauges.
