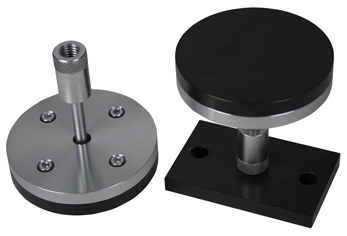

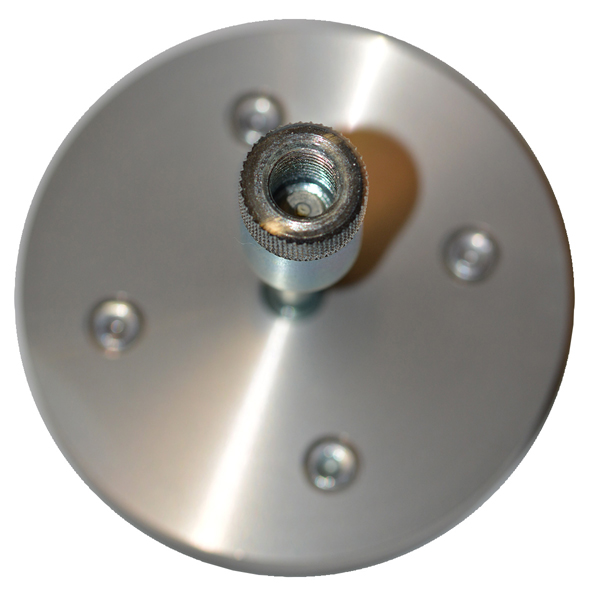

Adhesive Test Plates

NIDEC-SHIMPO’s Adhesive Test Plate attachments with hardened tool steel, detachable face-plates can test samples up to 3” (76.20 mm) in diameter. Ball socket mounting screws in both grips assure parallelism and perpendicularity to force when load is applied.

  • Detachable face-plates can test samples up to 3" (76.20 mm) in diameter.
  • Includes both bottom and top mount grips.
  • Ball socket mounting screws in both grips assure parallelism and perpendicularity to force when load is applied.
Model FG-M10ADHE3
Capacity 500 lb (250 Kg)

Download FG-M10ADHE3 Dimensions
