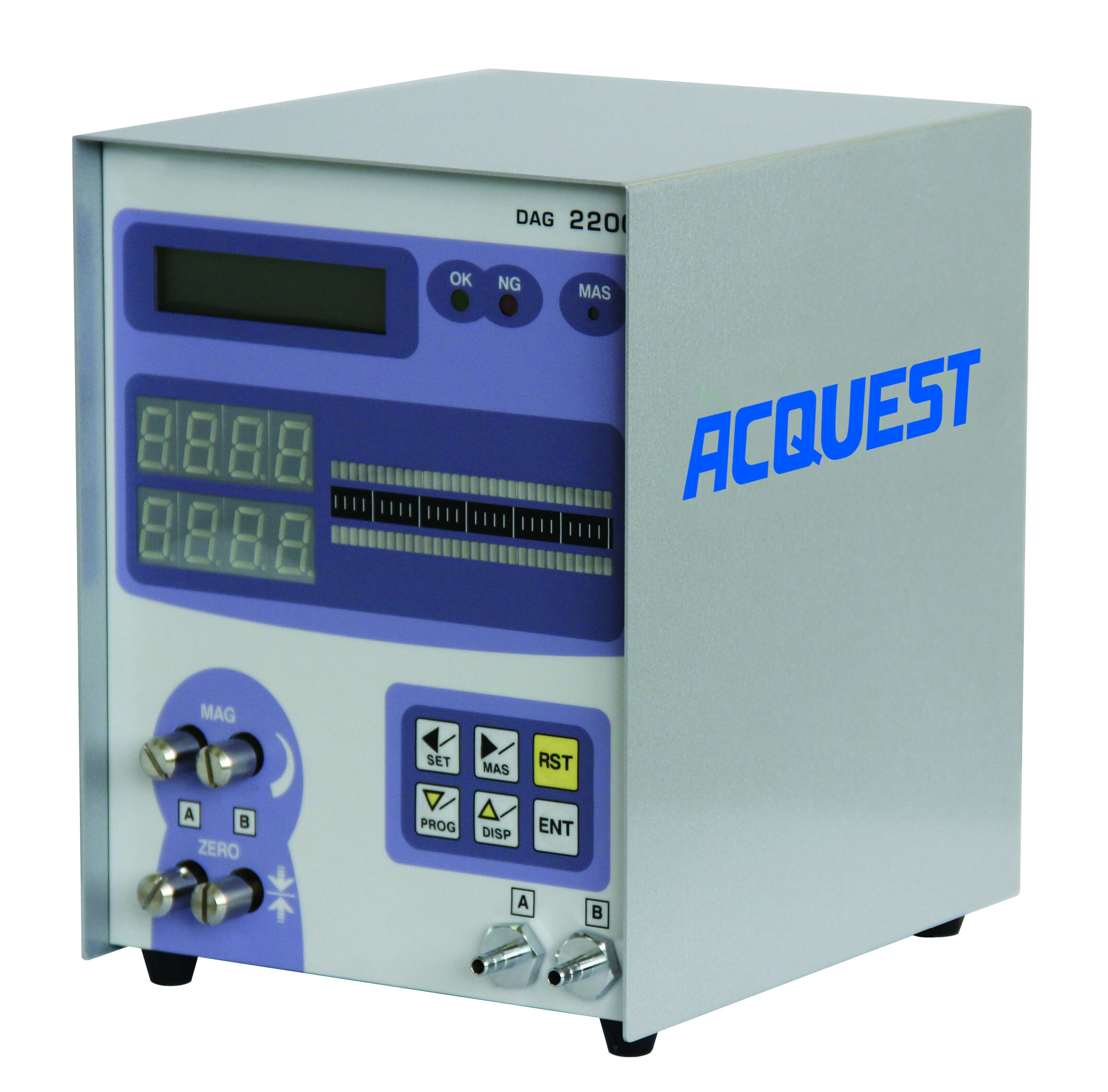

DAG-2200 Air Gauge

Air Gauge with 2-Channel Input, Dual Bar Graph Display

The Series DAG-2200 air gauge micrometer display is a precision, non-contact measuring instrument when combined with a customized air probe sensor.

Air gauge measurement is a non-destructive testing method that utilizes air flow and the resistance created between an object under test and the air gauge's sensing probe. The air resistance or back pressure changes with distance between the air probe and device under test. This air pressure change out of the air sensor can be scaled on a display to determine dimensional analysis as well as product acceptance. Due to air gauging’s fast response, outstanding tolerance and accurate repeatability, the DAG-2200 air micrometers are ideal for quality measurements on the production floor.

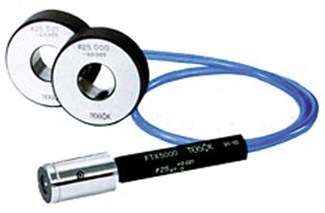

The DAG-2200 Gauge display with separate, customized air probe sensors performs fast, easy and precise, dimensional analysis on components. The DAG-2200 provides two separate sensor channel inputs with corresponding bar graph indication of an item’s dimension. Pass/Fail feedback is instant with the light color LED indication of go/no go (OK, NG).

All DAG-2200’s come standard with RS-232 serial communications for data analysis on PC’s. An Excel spreadsheet program is available for download that allows communication with up to 5 units simultaneously. The air gauge technology offers sufficient magnification and reliability to measure small tolerances down to 0.1 micron and even 0.01 micron with the 10 micron range.

  • 2-Channel input is ideal for more complex parts involving taper, parallelism and pitch measurements.
  • Actual values presented on the 16-digit LCD display.
  • In coordination with the max./min. masters and the air probe sensor, control keys are used to automatically calibrate the zero and full scale of the display.
  • 10 settings can be programmed to save master values allowing quick retrieval for future tests
  • Sensitivity adjustment knob allows fine tuning for more precise air control
  • External signal input allows for automatic master calibration of zero and span with separate input switch
  • Utilizing the standard serial output communications, data can be downloaded to a PC for processing and further evaluation
  • Several options are available such as rank judgment and judgment result output, rank output, peak reading, BCD output, and Digimatic output
Model DAG-2200
Input 2 air channel
Measuring range μm (mm) 10 (0.0100), 20 (0.0200), 50 (0.0500), 100 (0.100)
Resolution in μm (mm) 0.1 (0.0001), 0.2 (0.0002), 0.5 (0.0005), 1 (0.001)
Shift Range ±1000% (full scale)
Display Main: 4-digit (red, green, orange); LCD: 2 Line 16-Digit
Auto Mastering Range Zero position: ±50% (full scale)
Sensitivity: ±20% (full scale)
Power Requirement 85 to 264 VAC, 50/60 Hz 100-VAC
Power Supply Capacity 30 VA
Air Supply Pressure 28.4 psi (196 kPa)
Source Pressure 43.5 psi (300 kPa) to 101.5 psi (700 kPa)
Air Supply Volume 106 cfh (50 l/min)
Operating Temperature 32 to 113°F (0 to 45°C)
Dimensions 5.9 x 7 x 7.6″ (150 × 180 × 193 mm)
Weight 6.6 lb (3.3 kg)
Warranty 1-Year
DAG-2201 Air gauge micrometer display with 10 micron range
DAG-2202 Air gauge micrometer display with 20 micron range
DAG-2205 Air gauge micrometer display with 50 micron range
DAG-2210 Air gauge micrometer display with 100 micron range

Options

-DP Digimatic Output
-DC Judgment Result Output
-P Peak Measurement Function
-R Rank Judgment
-DR Rank Output
-BC BCD Output

Optional Accessories

CAG2000-OP-AF Air Filter & oil Separator with manual drain
CAG2000-OP-AR Precision Regulator
CAG2000-OP-CB-1 RS-232 Communication Cable 9 pin for PC
FSW-1 Foot Switch Single Type

Literature Download

DAG-2200 Data Sheet | DAG-2200 Manual
